After Service Field Maintenance and Repair Service 532nm 5MW Green Dot Laser Module

Name: After Service Field Maintenance and Repair Service 532nm 5MW Green Dot Laser Module
Brand: Lasence
Price: 60.00 USD

Quality After Service Field Maintenance and Repair Service 532nm 5MW Green Dot Laser Module for sale

Place of Origin : China

Condition : New

Warranty : 1 Year

After-sales Service Provided : Free spare parts, Field maintenance and repair service, Online support

Spare Parts Type : Laser module

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : Hot Product

Brand Name : Lasence

Key Selling Points : High stability, wide temperature range

Showroom Location : Germany

Applicable Industries : Building Material Shops, Food & Beverage Factory, Construction works , Industry

Weight (KG) : 0.02 KG

Wavelength : 532nm ±2nm

Output Power for dot : 4-5mW

Output Power Mode : CW

Beam Divergence : ≤1.7mrad

Beam Mode : TEMoo

Power Type : APC

Voltage : 3.0-6.0V

Driver Current at 5V : ≤200mA

Input : 57Hz

Operating Temperature : 15 to 50℃

After Warranty Service : Video technical support, Online support, Field maintenance and repair service

Local Service Location : Germany

Packaging Details : ESD Plastic bag, outside with carton package

Port : Qingdao,China

Price : $60.00/pieces 1-99 pieces

Contact Now

Products Description

After Service Field Maintenance and Repair Service 532nm 5MW Green Dot Laser Module

Features：

· DPSS 532nm Greent dot laser

· Fast Rise Time

· High Reliability

TEMoo

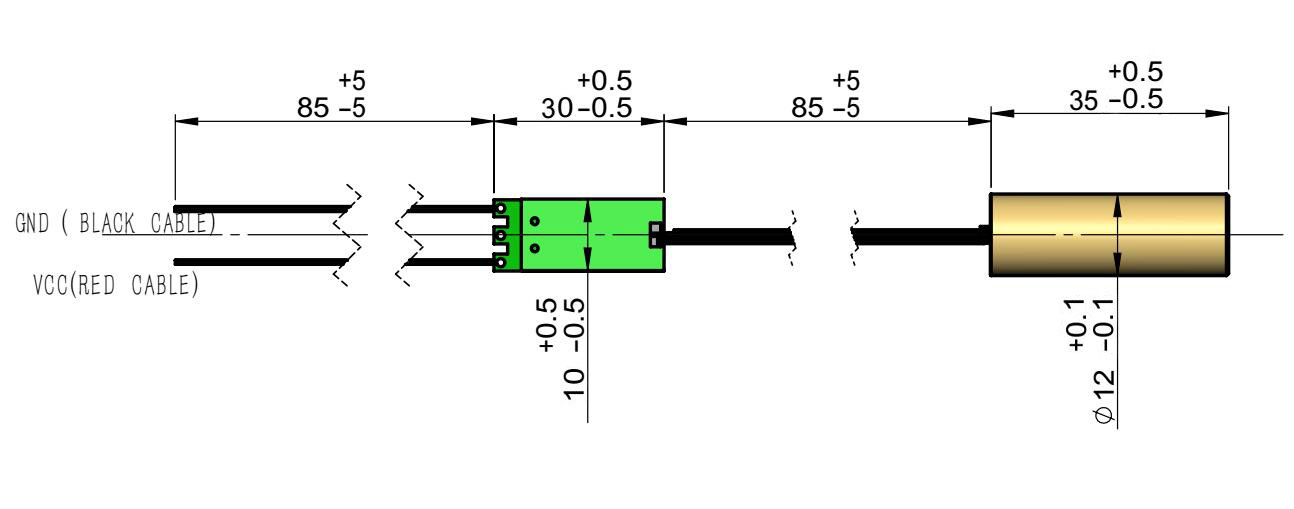

Dimensions (Unit: mm)

Wavelength	532nm±2nm
Output Power for dot	4-5mW
Operating Case Temperature	15 to 50℃
Power Stability	±5% at constant temperature
Beam Divergence	Max 1.7mrad
Woking Volatage	5V, APC, 57Hz
Working Current at 5V	≤ 200mA
Rise Time	< 2sed.

Company Profile

Qingdao Lasence Co., Ltd is a high technology enterprise which is mainly engaged in R&D, production and sales of laser products. The factory was founded in 2009. We focus on the development and production of laser modules and lasers for more than 10 years. Our main products are DPSS lasers range from 500nm to 600nm, including dot laser module, line laser module and ring laser module, as well as high power lasers. Our own crystal called “self-frequency doubling crystal ” is widely used with high stability and wide temperature range -40℃ to 60℃。 These lasers can be CW, TTL or Analogue modulation, which are widely used in applications of biomedical, medical, lighting and alignment, positioning, measurement, precision machining, construction and so on. We have exported for nearly 10 years mainly to Europe, North America, Mid-east and East Asia. Just tell us what you want to achieve, and Lasence will help you get there.
